575HP / 500 Wedge


Technische Daten
Leistung: 575 PS
Drehmoment: 844 Nm
Statische Verdichtung: 10.25:1
Block: Cast Iron, 4.380" Bore
Kurbelwelle: Forged Steel, 4.150" Stroke
Köpfe/Brennraum: Aluminum Stage VI, 78cc
Ventile (I/E): 2.140"/1.810"
Nockenwelle (I,E): 0.453"/0.543"
Steuerzeiten @ 0.050" (I,E): 248°/248°
Ansaugbrücke: M1 Aluminum Single Plane
erhältlich als:


Beschreibung

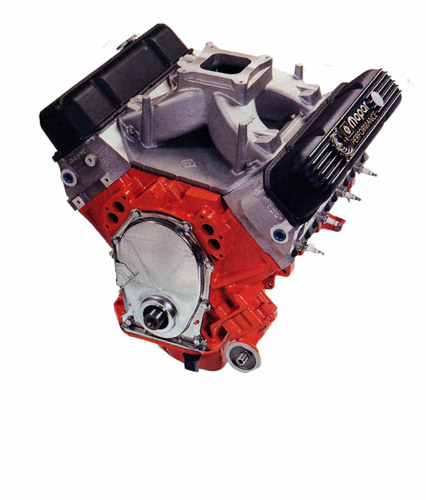

The 575 Horsepower 500 cubic inch wedge engine assembly is based on a heavy-duty cast iron, thick wall, thick deck, cross-bolted main block. The hi-flow aluminum Stage VI heads use large 2.140” intake and 1.810” exhaust valves. The 4.380” cylinder bores house 10.25:1 cast aluminum flat top pistons. The 292° duration, 0.543” lift camshaft is controlled by heavy-duty hi lift valve springs with dampers and umbrella valve seals. Includes cast aluminum valve covers, chrome timing cover, and single plane M1 aluminum 4 bbl intake manifold. This engine assembly does not include water pump or housing, damper, carburetor, distributor or plug wires. Completely assembled from intake to oil pan.
